Introduction
At a Glance
Corrugated board is a composite of fluted paper (medium) glued between flat paper layers (linerboard). The flute height, wall construction, and moisture content all affect equipment performance. ECT (Edge Crush Test) is the key metric. It measures how much weight the board can support before crushing, which directly predicts stacking strength and jam risk in your equipment.

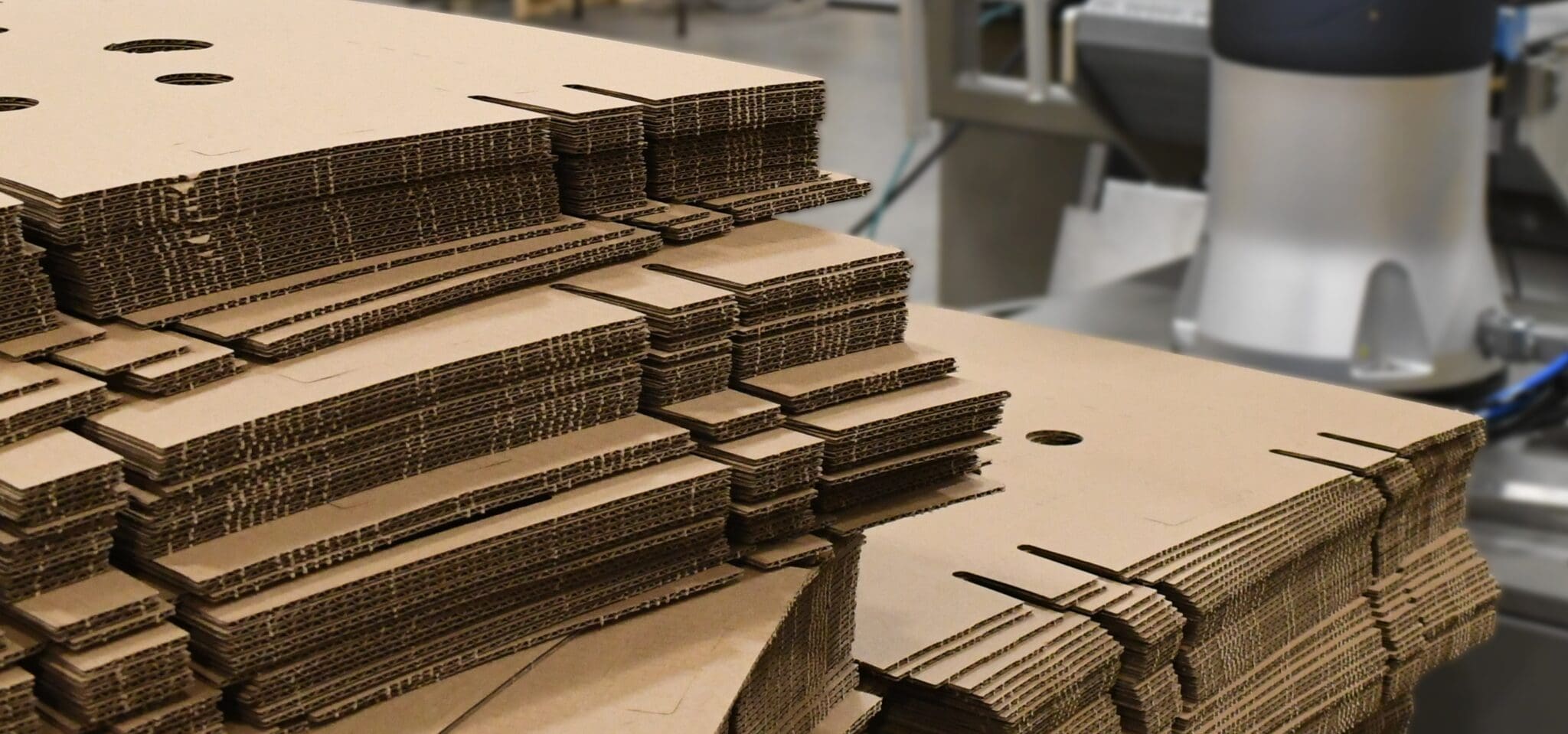

Your standard 32 ECT C-flute blank arrives damp from the loading dock. Your case erector’s vision system flags collapsed corners, and your packer’s infeed chute rejects three boxes in a row. You’re left asking, “Is this a material problem or a machine problem?”
Corrugated board is simpler than it sounds. It’s a composite of fluted paper glued between flat paper layers. But the structure, the flute profile, the moisture content, and the glue-line quality all affect how that blank behaves when you’re forming it at speed. Understanding what corrugated actually is helps you pinpoint answers instead of guessing where the issues lie.
In this article, we’ll cover:
-
What corrugated board is and how it’s built
-
Flute profiles (A, B, C, E, F) and where each is used
-
Single-wall, double-wall, triple-wall—when each matters
-
ECT and why it’s the spec you need to watch
-
How corrugated quality affects your case erector or packer
-
Reading a Box Maker’s Certificate (what to check before you run)
Corrugated Board: Three Layers That Give You Strength Without Weight
Corrugated board is a composite material: Two flat sheets of paper called linerboard sandwich one or more wavy layers of paper called medium. The flutes are the waves, the defining feature that separates corrugated from solid cardboard. The wavy structure distributes point loads and resists buckling, which is why corrugated outperforms solid cardboard on stacking strength without being heavier.
Linerboard can be kraft pulp (virgin fiber, high strength, light brown color) or test liner (recycled fiber, lower cost, varied color). The fluted medium also has these same material choices. Both layers are glued together with starch-based adhesive which is typically corn starch or modified starch. The result is a composite that balances strength, weight, cost, and surface quality.
Manufacturing starts with paper rolls fed into a corrugator machine. Heated rollers shape the medium into flutes. Adhesive is applied, and the fluted medium is laminated between two linerboards. The assembled web is cut into sheets and shipped to converters—box manufacturers—who score, cut, fold, and glue your finished box.
Key Takeaway
The structural integrity of that blank depends on four things: flute profile, linerboard quality, glue-line quality, and moisture content. All four cascade into your equipment performance.
Flute Profiles: A, B, C, E, F (The Standard Landscape)
Flute height is the single most critical variable in corrugated performance. It determines stiffness, crushability, and surface smoothness. The packaging industry standardized five main profiles:
Flute
Height (mm)
Flutes per Foot
Primary Use
A-Flute
Height (mm)
4.75–5.0
Flutes per Foot
33–36
Primary Use
Protective packaging, void fill, cushioning
B-Flute
Height (mm)
1.5–1.6
Flutes per Foot
45–53
Primary Use
Retail/Point-of-Sale displays, double-wall pairing
C-Flute
Height (mm)
3.5–4.0
Flutes per Foot
39–43
Primary Use
Shipping cases, e-commerce, general purpose
E-Flute
Height (mm)
1.2–1.8
Flutes per Foot
90–96
Primary Use
Folding cartons, premium packaging
F-Flute
Height (mm)
0.8–1.0
Flutes per Foot
125–130
Primary Use
High-end retail, specialty goods
A-Flute provides maximum stiffness and cushioning but lower crushing strength than C-flute. It’s used mainly for protective packaging and void fill, rarely the choice for shipping cases.
B-Flute is medium-stiff with better surface smoothness than A-flute. It shows up in retail point-of-purchase displays and high-graphics applications. B-flute also pairs with C-flute in double-wall constructions (B+C) for heavy shipping cases.
C-Flute is the most widely used profile globally. It balances stiffness, crushing strength, and surface quality. If your case erector is running corrugated, it’s probably C-flute. C-flute is the standard for general-purpose shipping cases, e-commerce boxes, and food and beverage packaging.
E-Flute is fine and stiff, with excellent surface smoothness and print quality. It’s used for folding cartons and premium consumer packaging when aesthetics matter more than stacking strength.
F-Flute is the finest profile, offering superior print surface and minimal structural strength. It’s used for high-end retail packaging and specialty consumer goods.
PRO TIP
Consistency is the quality differentiator. A supplier who holds tight tolerances on flute height will deliver more predictable performance than one who lets variability accumulate. While flute heights are ranges (natural material variation is normal), this is what separates reliable suppliers from unreliable ones.
Wall Constructions: Single, Double, Triple (And When Each Matters)
Single-wall corrugated consists of one fluted medium layer between two linerboards. Total thickness is typically 3.5–5.0 mm depending on flute profile. Single-wall is the most common and lowest-cost option. It handles the majority of shipping cases, e-commerce boxes, and applications with moderate stacking loads.
Double-wall consists of two fluted mediums with three linerboards (the most common pairing is B-flute plus C-flute, which is called BC construction). Total thickness is approximately 6–7 mm. Double-wall is used for heavier items, greater stacking heights, or longer supply chains where single-wall would crush. Entry-level double-wall shipping boxes are typically rated 48 ECT. Double-wall also provides better puncture and moisture resistance.
Triple-wall consists of three fluted mediums with four linerboards. Total thickness runs 10–12 mm. Triple-wall is used for extremely heavy items, machinery, or reusable containers requiring maximum crush resistance. It’s rarely deployed in case-erector environments because its stiffness and mass make it difficult to handle at speed.
Pro Tip
The choice between the three wall constructions depends on product weight, stacking height during warehousing and transit, supply-chain duration, and environmental conditions (humidity and temperature swings). For most case-erector lines, single-wall C-flute at 32 ECT (standard) or 44 ECT (upgraded) is the baseline specification.
ECT: The Metric That Predicts How Your Cases Will Stack
ECT stands for Edge Crush Test. It measures compressive strength when a strip of corrugated is stood on its edge and compressed vertically until it fails—a direct correlation to stacking strength or how many pounds of load the finished box can support without crushing. The measured units are pounds per linear inch (lb/in).
A 32 ECT board means a 1-inch-wide strip can withstand 32 pounds of vertical force. For a finished box with a perimeter of roughly 80 inches, the McKee formula translates that to approximately 800–1,000 lbf total stacking strength, depending on box height.
Common ratings are 23, 26, 32, 44, 48, 51, 61, and 90 ECT. Single-wall C-flute is typically 32 ECT (standard, rated for approximately 15–20 lb per-box stacking) or 44 ECT (upgraded, approximately 20–25 lb). Double-wall starts at 48 ECT.
The test is standardized: TAPPI T811 is the North American referee standard. A sample is conditioned to 50% relative humidity and 73°F for at least 24 hours, placed vertically between compression plates, and loaded until failure. The specimen edges are waxed to ensure you’re measuring true flute-axis compression, not a failure at the edge.
Why ECT Matters for Your Equipment
An under-specified or degraded ECT rating will crush during case formation, leading to collapsed corners, wrinkled panels, and jams.
Pro Tip
Moisture makes a big impact. A 32 ECT board in perfect dry condition (7–8% moisture) can perform well, but the same board at 12–13% moisture may perform at only 85–90% of rated strength. At 16%+ moisture, strength loss exceeds 50%. Your line running at speed has no margin, so wet corrugated can easily turn into jam spikes and throughput losses.
Why Corrugated Quality Affects Your Case Erector and Case Packer
Weak or Inconsistent Corrugated
Weak or inconsistent corrugated manifests immediately. Flute crushing and structural collapse occur during forming when flutes are weak due to poor medium quality, low ECT, or moisture damage. You see collapsed corners, wrinkled side panels, delamination, and structural rejects. Case erectors apply mechanical force to form, crease, and glue, and weak flutes have no tolerance for that force.
Dimensional Variability and Jam Risk
Corrugated thickness (called caliper) varies based on flute-height consistency and linerboard quality. A blank that’s thicker than expected can jam in the folding jaws or loading chute. If the blank is too thin, boxes collapse mid-cycle, vision systems misread, and jam recovery can take up valuable time. Moisture is a key driver of variability as corrugated paper is hygroscopic, meaning it swells and shrinks with relative humidity. Converters typically condition corrugated to 8–10% moisture before shipment, but in-plant environmental variation can exceed specification, especially near loading docks where humidity is high.
Glue-Line Integrity
The starch adhesive bond between linerboard and medium must be strong and consistent. Weak glue lines can separate during forming (delamination) or fail at the crease because the crease will crack instead of folding cleanly. The result is cosmetic rejects and structural failures. Glue-line strength depends on both adhesive formulation and substrate quality, which includes how smooth and absorbent the linerboard is.
Moisture Sensitivity and Strength Loss
Beyond dimensional changes, moisture degrades the mechanical properties themselves. At 7–8% moisture, a 32 ECT board performs at rating. At 12–13%, the same board performs at 85–90% of rating. At 16%+, loss exceeds 50%. Since there’s no tolerance for a line running at speed, you can expect any wet corrugated to result in jam spikes.
Key Takeaway
The connection is direct. Corrugated quality determines whether your line runs clean or stops for jam recovery.
Reading a Box Maker’s Certificate: What to Check Before You Run
A Box Maker’s Certificate (BMC) is a quality-assurance stamp printed on the bottom or side of a corrugated box. It certifies that the box meets stated performance standards and provides the specifications you need to verify before running.
What the BMC Shows
-
Box manufacturer’s name and serial or batch code (identifies the factory and production run)
-
Board type (single-wall, double-wall, or triple-wall) and flute profile (C, BC, etc.)
-
Linerboard grades (e.g., “Test Liner 42 lb” or “Kraft 42 lb”)
-
ECT rating (e.g., “32 ECT”)
-
Mullen burst rating (less common on modern stamps)
-
Plant location and date code
What to Do
Before you run a job, scan the BMC. Does it match your specification? If your job traveler calls for “32 ECT C-flute single-wall” and the BMC shows “26 ECT” or lists it as “double-wall,” there’s been a material substitution. Escalate before running as a spec mismatch will affect your line performance.
What the BMC Does NOT Guarantee
It certifies the corrugated blank (the material), not the finished box assembly. A perfect BMC stamp on a poorly glued or poorly creased box is a false signal. The certificate also doesn’t account for in-service abuse (such as drops or rough handling) or environmental exposure (such as extended wetness or extreme cold).
Conclusion
Corrugated board is a composite material where the flute profile, the wall construction, the ECT rating, and the moisture content all directly affect your equipment. Understanding the structure and the specifications lets you distinguish between a material problem and a machine problem.
When your erector jams or your vision system flags rejects, you can now ask the right questions, such as…
-
Is the ECT under-spec’d for my application?
-
Has the blank absorbed too much moisture?
-
Are the flutes weak, or is the linerboard the limiting factor?
With a solid understanding of what corrugated is, you’re on your way to finding the solid answers.
